LLM, RAG, and AI Agents: From Concept to Engineering the Intelligent Stack

In recent years, semantic models and the concept of “agents” have exploded in parallel, and the market is saturated with statements that pit LLM, RAG, and Agent against each other. In reality, they are not competing technologies but three layers of the same intelligent system: Thinking (LLM) — Memory (RAG) — Execution (Agents). Understanding and correctly combining these three layers is the key to turning research results into stable production systems.

Thinking (LLM) — Memory (RAG) — Execution (Agents)

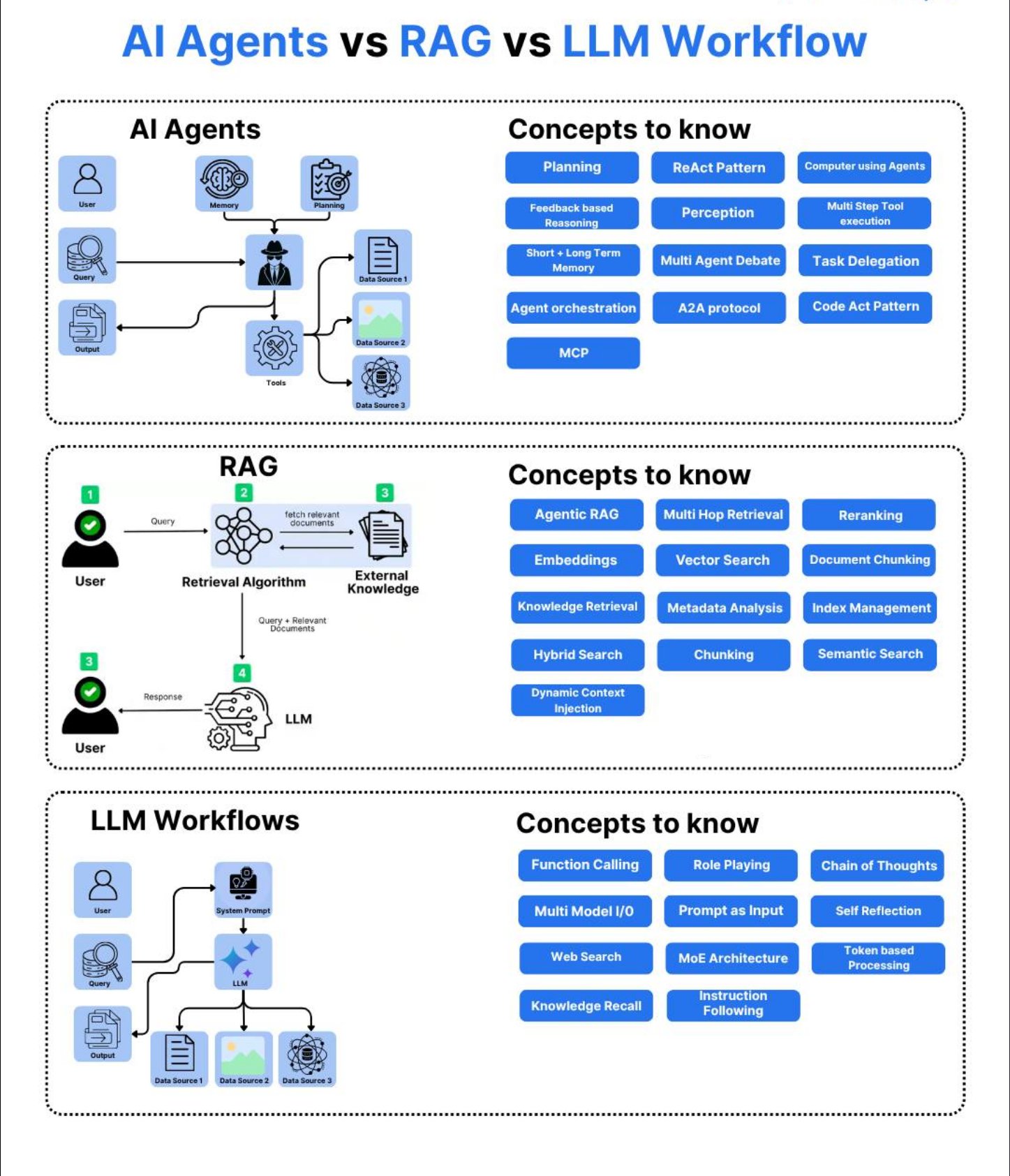

This article is based on a summary diagram (AI Agents / RAG / LLM Workflows). It structures the concepts listed in the diagram into executable engineering solutions, pointing out implementation highlights, common patterns, and deployment pitfalls.

1. Overview of the Three Layers and Their Interrelationships

LLM (Large Language Model) — Thinking Layer
Function: language understanding, reasoning, generation, chain-of-thought, role-playing, and instruction execution.
Limitations: knowledge freeze, blind spots on real-time facts, susceptibility to prompt engineering.
RAG (Retrieval-Augmented Generation) — Memory Layer
Function: retrieve external knowledge (documents, knowledge bases, databases, web pages) and inject it into the LLM’s context, providing up-to-date, auditable factual support. Key technologies: vector representation, vector search, retrievers, reranking, chunking, multi-hop.
Value: corrects the LLM’s factual blind spots, enhances explainability and auditability.
AI Agents — Execution Layer
Function: goal-driven closed-loop process manager responsible for perception, planning, tool invocation (function/tool execution), multi-step execution, and reflection (feedback-based reasoning / self-reflection).
Value: moves from “answering questions” to “completing tasks,” enabling automated workflows (e.g., retrieve–report–export–email push).

The result of this collaboration is a composable, auditable, and scalable “intelligent service.”

2. Key Concepts and Engineering Highlights (by Diagram Category)

1) AI Agents — Core Concepts and Implementation Patterns

Planning: break a large goal into concrete sub-tasks, commonly using tree search or task decomposition frameworks.
ReAct Pattern: weave reasoning and action together in interaction, allowing the agent to decide at each step whether to call a tool or continue reasoning.
Perception: encode external events, tool returns, and monitoring data into observations usable by the agent.
Multi-Step Tool Execution: support chained calls across tools and systems with transactional consistency (e.g., retrieve, compute, write back).
Short + Long Term Memory: short-term for current session context, long-term for user preferences, historical tasks, and strategy templates.
Multi-Agent Debate / Task Delegation: use multiple sub-agents to collaborate or debate to improve decision quality; design coordination and conflict resolution strategies.
Agent Orchestration / A2A Protocol: inter-agent protocol and orchestration layer (similar to a microservice gateway), defining message formats, entry order, and error handling.
MCP (Multi-Context Planner/Policy): manage behavior strategies across multiple contexts.

Implementation notes: tool calls must be idempotent and rollback-capable; agents must log every action and rationale for audit; design feedback loops so agents can adjust strategies based on results.

2) RAG — Practical Details of Retrieval-Augmented Generation

Embeddings & Vector Search: map documents and queries to vector space, commonly using FAISS, Milvus, Pinecone.
Document Chunking & Index Management: split large documents into semantically coherent chunks, build indexes, and maintain metadata (source, timestamp, credibility).
Multi-Hop Retrieval: when a question requires multiple pieces of evidence, retrieve in stages and merge evidence.
Reranking / Metadata Analysis: after initial vector retrieval, re-rank results using dense or sparse signals (BM25, time weight, source weight).
Hybrid Search / Semantic Search: combine keyword search with semantic search to cover different scenarios (old documents, structured fields, etc.).
Dynamic Context Injection: construct dynamic prompt/context injection strategies (which paragraphs to pass, how to summarize, context window management).
Agentic RAG: treat the retriever as a tool of the agent; the agent can trigger multi-round retrieval and evidence synthesis on demand.

Implementation notes: address vector index staleness and drift, preserve source traceability for explainability, manage context budget (token limit) between retrieval and generation.

3) LLM Workflows — Advanced Prompting and Capability Expansion

Function Calling / Tooling: expose function interfaces (structured output) so the LLM can trigger external systems (e.g., database queries, API calls, script execution).
Chain of Thoughts / Self Reflection: explicitly let the model output intermediate steps or reflect on results in multiple rounds to reduce error rates.
Role Playing / Prompt as Input: control answer style and strategy with roles and system prompts (e.g., “auditor” mode).
Multi-Model I/O / MoE Architecture: route different tasks to dedicated sub-models (Mixture of Experts), or combine small models for fast inference with large models for complex reasoning.
Token-Based Processing / Knowledge Recall: manage token usage, strategically recall key facts from history to maintain coherence.
Instruction Following / Prompt Engineering: design clear instructions to reduce unpredictable outputs.

Implementation notes: define strict schemas and exception signals for function calls; keep prompt design maintainable (templated) and link to A/B testing for optimization.

3. Architecture Example (Engineering Perspective)

Recommended three-layer stacked architecture (from outermost to innermost):

Access Layer (API Gateway / Vector Query Entry)
- Receive user requests, perform initial identity authentication, rate limiting, and logging.
Agent Layer (Agent Orchestrator)
- Task decomposer, scheduler, strategy manager.
- Call tools on demand: RAG retrieval, external APIs, databases, business process systems.
- Handle failure retries, transactional rollbacks, and concurrency control.
Knowledge Layer (RAG Subsystem)
- Embedding service, vector index, text chunker, reranker, index management service.
- Provide auditable sources and similarity scores.
Inference Layer (LLM)
- Offer multi-model services: small models for quick validation, large models for complex generation.
- Support function-call schemas and structured output.
Long-Term Storage & Observability
- Logs, audit trails, performance metrics, result quality feedback (for online learning / scheduling strategy improvement).

4. Deployment Engineering Checklist

Start with the Minimum Viable System: first implement LLM + RAG for Q&A, then gradually add Agent automation.
Design for Auditability: record source, model input/output, and timestamp for every retrieval, function call, and agent decision.
Prompt Templateization & Version Control: store system prompts, roles, and templates in a configuration repository for rollback and A/B testing.
Index Governance: set lifecycle for indexes (expiration, re-embedding, versioning), and retain source metadata.
Security & Permission Isolation: filter and redact sensitive data during retrieval, enforce permission checks on tool calls.
Quality Monitoring & Human Feedback Loop: introduce manual review samples, establish quality scoring, feed back to reranking and agent strategies.
Idempotency & Failure Compensation: make tool calls idempotent where possible; provide compensation or human takeover on errors.
Cost Control: distinguish “must-call-large-model” steps from those that can be handled by small models or retrieval, reducing API/inference costs.

5. Common Challenges and Solutions

Hallucinations & Wrong Information: use RAG and trace sources in generated results; introduce reranking and extractive verification (fact-check).
Context Window Limits: intelligently chunk long documents, use summaries or multi-stage retrieval (multi-hop).
Multi-Agent Conflicts: design arbitration strategies and eventual consistency mechanisms; introduce simple “vote/debate” flows and retain intermediate logs.
Real-Time vs Cost: cache and prioritize time-based index for real-time queries; use offline batch processing and re-embedding for cold data.
Data Governance: enforce source metadata, data retention policies, user privacy protection, and access control.

6. Key Performance Indicators (KPIs)

Fact Precision: accuracy of verifiable facts in answers.
Source Coverage: percentage of answers that cite sources.
Task Completion Rate (for Agents): proportion of tasks automatically executed and successfully completed.
Latency & Cost: average response time and inference cost per request.
User Satisfaction / Human Evaluation Score: online quality feedback.
Audit Traceability: ability to trace an answer back to retrieved documents and agent decision chain.

7. Conclusion: Engineering Mindset Matters More Than Tools

Hot buzzwords will cycle, but engineering challenges will not disappear. A truly usable intelligent system must combine LLM reasoning, RAG factual support, and Agent execution while addressing auditability, security, and cost at the engineering level.

Recommended build sequence:

Use LLM as a language thinking tool.
Add RAG as “factual memory” to fill model blind spots.
Finally, employ Agents as an “operational closed-loop” framework, giving the system full understanding-to-action capability.

Only by stacking the three layers—Thinking, Knowing, Doing—can AI truly move from the lab into production, taking on complex business automation and intelligence responsibilities.
